INTRODUCTION
This User Guide has been supplied to give guidance and advice to help you make the
most effective use of your wheelchair. We recommend you use this guide to become
completely familiar with the chair, and to know how to ensure that it is maintained in
order to give you maximum benefit and reliability.

SELF PROPELLING WHEELCHAIR

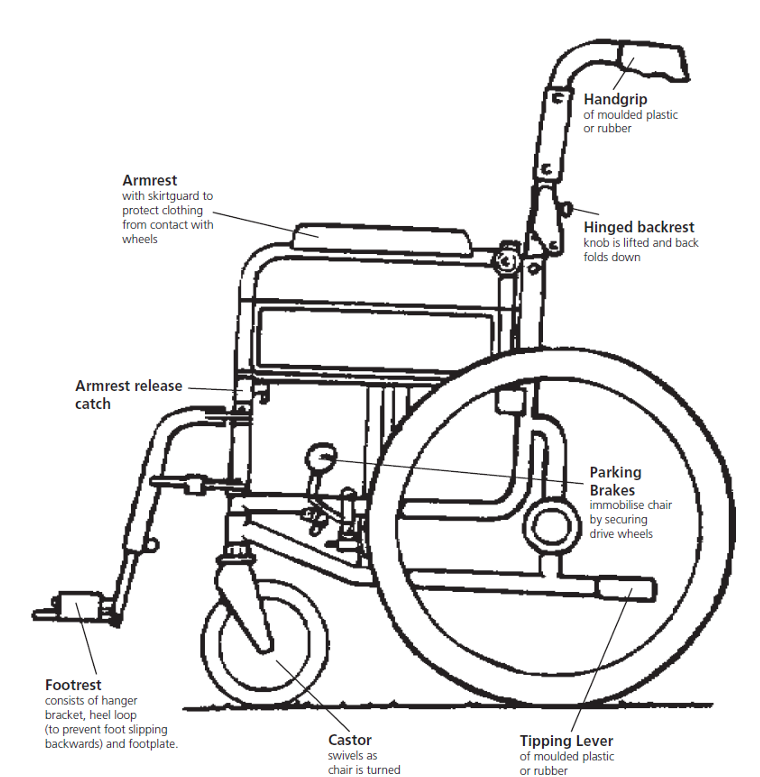

Wheelchair model supplied may vary (Please note representative picture only)

PARTS OF THE WHEELCHAIR

ARMREST
Most wheelchairs have detachable armrests.
These can be removed if you need to transfer
sideways into or out of the wheelchair, for storage or
access under a table. Removal is generally by
operating a latch at the front side of the chair, and
lifting the armrest out from the front and rear sockets.

On replacing the armrest, ensure alignment with their respective sockets and ensure
that the release lever has locked firmly into place.

BACKRESTS
Most wheelchairs have folding backrests. Hinged backrests usually have two knobs
that are lifted at each side of the frame upright (see positions of these hinges in the
previous diagrams). With the knobs and plungers fully up, the backrest is free to fold at
the back hinge. To raise the backrest, simply lift until it is upright and check that the
plungers are fully back into the locked positions.
Always fold the back rest before putting the chair in the boot of the car.

PARKING BRAKES
These are located either side of the chair next to the rear wheels and operate as a
brake pad onto the tyre. Push the levers forward to apply the brakes.

Brakes must always be applied when getting into and out of the wheelchair to
prevent it from rolling away when the occupant is transferring. Brakes should also be
applied when folding or opening the wheelchair or lifting the chair.

FOOTRESTS
It is easier and safer, to get into the wheelchair by moving the footplates aside. This is
done by turning the footplates up out of the way and swinging them aside.

You must not stand on the footplates when getting into or leaving the
wheelchair or the chair will tip forwards.

The distance from the seat to the foot rest can be adjusted for comfort.
There is a clamp bolt or locating clip which must be slackened or
removed as appropriate to make the adjustment.
The safest position is usually with your thighs horizontal, and hips and
knees at right angles. Retighten clamp or refit clip after adjustment
and check for security.
The footrests will have been correctly adjusted for you by one of the Occupational
Therapy team.

TO OPEN THE WHEELCHAIR
If the chair is of a folding frame design, it can be folded for
storage or ease of transportation.
To open the chair, push the armrests as far apart as possible.
Push down on the side edges of the seat, keeping your fingers
facing inwards.

Never put your fingers between the frame and the seat.

TO CLOSE THE WHEELCHAIR
Turn footplates upright and footrests out to the sides or
remove completely. Grasp the middle of the seat canvas at
front and back. Pull upwards until the chair is fully closed.

SWINGING DETACHABLE ELEVATING LEGRESTS
These support the whole leg in any desired position and may be adjusted individually
for length and elevation. To raise the legrest, simply lift it to the desired position where
it will lock automatically. To lower the legrests, de-activate the locking catch and lower
the legrest to the position you require, then release the locking catch to secure the
legrest in place.

Extra care must be taken when self-propelling or pushing a
chair with legrests straight out in front, due to the risk of the
legs being bumped or knocked.

When using a wheelchair fitted with elevating legrests, you need to be aware that you
require a larger space to turn the chair around in.

TRANSFERRING TO AND FROM A WHEELCHAIR
Your Occupational Therapist will assess and practice
which method you will be safest using:-

The most common method of transfer is:-
SIDEWAYS

If the wheelchair is fitted with detachable armrests, you
need to remove the armrests when transferring to or from
the chair/bed using a sideways transfer.

1. Lift and swing the footrests back out of the way.
2. Position your wheelchair alongside the
   seat, bed, car etc. and apply the brakes.
3. Remove the armrest
4. Your feet should be on the ground, not the footplates.
5. Bending slightly forward, push yourself up and pull yourself across onto the
   bed/chair/car seat.

It can also help to slide along a smooth board, such as a transfer board.

There are alternative ways to transfer. Your Occupational Therapist will advise
and practice this technique with you.

GENERAL SAFETY ADVICE

STOWING A WHEELCHAIR IN A CAR BOOT

To stow away your wheelchair in a car boot:

1. Apply brakes.
2. Remove all accessories – straps, cushions and
   removable parts such as armrests and footrests.
3. Fold chair, if possible.
4. Position chair parallel to boot.
5. Bend your knees, keeping your back straight.
6. Grasp the chair by the frame and lift into boot.

It may help if you balance the chair on the edge of the boot, then slide the chair in.
Alternatively, it may be positioned behind one of the front seats in a 4-door vehicle.

GOING DOWN A KERB (WITH ASSISTANCE)

1. Position the chair square to the kerb.
2. Grip the handles firmly.
3. Place one foot on the tipping lever and push down.
4. Balance the chair on its rear wheels, so that the front
   castors are clear of the kerb and move forwards.
5. Gently lower the chair with the rear wheels against
   the kerb, while supporting some of the chair’s weight.
6. Gently lower the front wheels.

Alternatively, for heavier users or older helpers, the
wheelchair can be taken down the kerb backwards.
Lower the back wheels onto the road first, then lower
the front castors.

GOING UP A KERB (WITH ASSISTANCE)
To get up a kerb with an attendant, again look for a ramp, or dropped kerb nearby. If
there is neither:

1. Position the chair square with front wheels almost
   touching the kerb.
2. Grip the handles firmly, and place one foot on the tipping
   lever.
3. Push down on the tipping lever and at the same time pull
   the handles towards you, balancing the chair on its rear
   wheels and lifting the castors off the ground.
4. Push the chair forwards until both front wheels are on
   the pavement.
5. When the rear wheels touch the kerb, lift the chair gently onto the pavement.

Alternatively, turn the wheelchair so that the rear wheels are against the kerb. Keeping
a firm grip on the handles, tip the wheelchair backwards to balance on the rear wheels.
Pull the wheelchair up onto the kerb (this movement requires greater strength on behalf
of the attendant).

WHEELCHAIR MAINTENANCE
Users and their attendants should never attempt major repairs or modifications other
than routine checks and cleaning. For any repairs or specific servicing please contact
your Occupational Therapy department, the telephone numbers are on the rear of this
booklet.

CLEANING
Upholstery and metal parts should be wiped over regularly with a soft cloth, and any
soiling, such as spilt food or mud should be cleaned off with warm water and a small
amount of washing up liquid. If need be, a mild solution of antiseptic can be applied to
the upholstery. Allow wet parts to dry before folding and storage NEVER store away a
damp chair.

Metal and chrome plated parts may be cleaned with a wax or silicone spray polish, but
this should not be used on the upholstery.

WHEELS
Check the free running of the wheels and castor rotation. Excessive wobble or rock is
an indication of wear and should be brought to the attention of your Occupational
Therapy Department. For wheels with metal spokes, check that these are tight and
undamaged. They should be equally tight. This can be done by running the back of your
finger over them; they should all have the same tone or pitch.

Finally, the wheels should run true when spun and not wobble.

BRAKES
Check that the nuts, bolts and screws are tight and the brake pad grips firmly on the
tyre.

UPHOLSTERY
Check that the screws holding the canvases are tight and do not swivel.

GENERAL INFORMATION
There are many different varieties of wheelchair to suit different occupants’ and
attendants’ needs. Therefore, whilst every effort has been taken to ensure the accuracy
of this manual, there may be discrepancies between descriptions given in this manual
and the design and configuration of your chair, and its accessories.

If you have any questions not answered in the manual. Contact your Occupational
Therapy Department.

Under no circumstances should you or any other person attempt to carry out any major
repair or modification to the wheelchair.

This wheelchair has been loaned to you by the hospital Occupational Therapy
Department; please return it when you no longer require it.
This wheelchair is the property of Worcestershire Acute Hospitals NHS Trust and should
be returned to one of the following Occupational Therapy Departments:-

Occupational Therapy
Worcestershire Royal Hospital
01905 760170
